OUR PRODUCTS

Motor Testing Panels

G E C

Fully Electric & Automatic Motor Test Panel

G E C

Automatic Motor Routine Test Panel

G E C

Endurance Panel For Motor

Pump Testing Panels

G E C

Computerised Pump Type Test Panel

G E C

Computerised Pump Routine Test Panel with Test RIG

G E C

Endurance Panel For Pump

Stator Testing Panels

G E C

Automatic Sequential Tester - Monoblock Stator

G E C

Automatic Sequential Analyzer - SUBMERSIBBLE Stator

G E C

Automatic Sequential Analyzer - Polywrap Wire

Other Products

G E C

High Voltage Tester

G E C

T.O.P Tester

G E C

Solenoid Coil Tester

G E C

MCB / Relay Tester

G E C

Air Leakage Tester

G E C

Tachometer Calibrator

G E C

Growler ( For Monoblock and Submersible )

G E C

Ohm Meter

❮ ❯

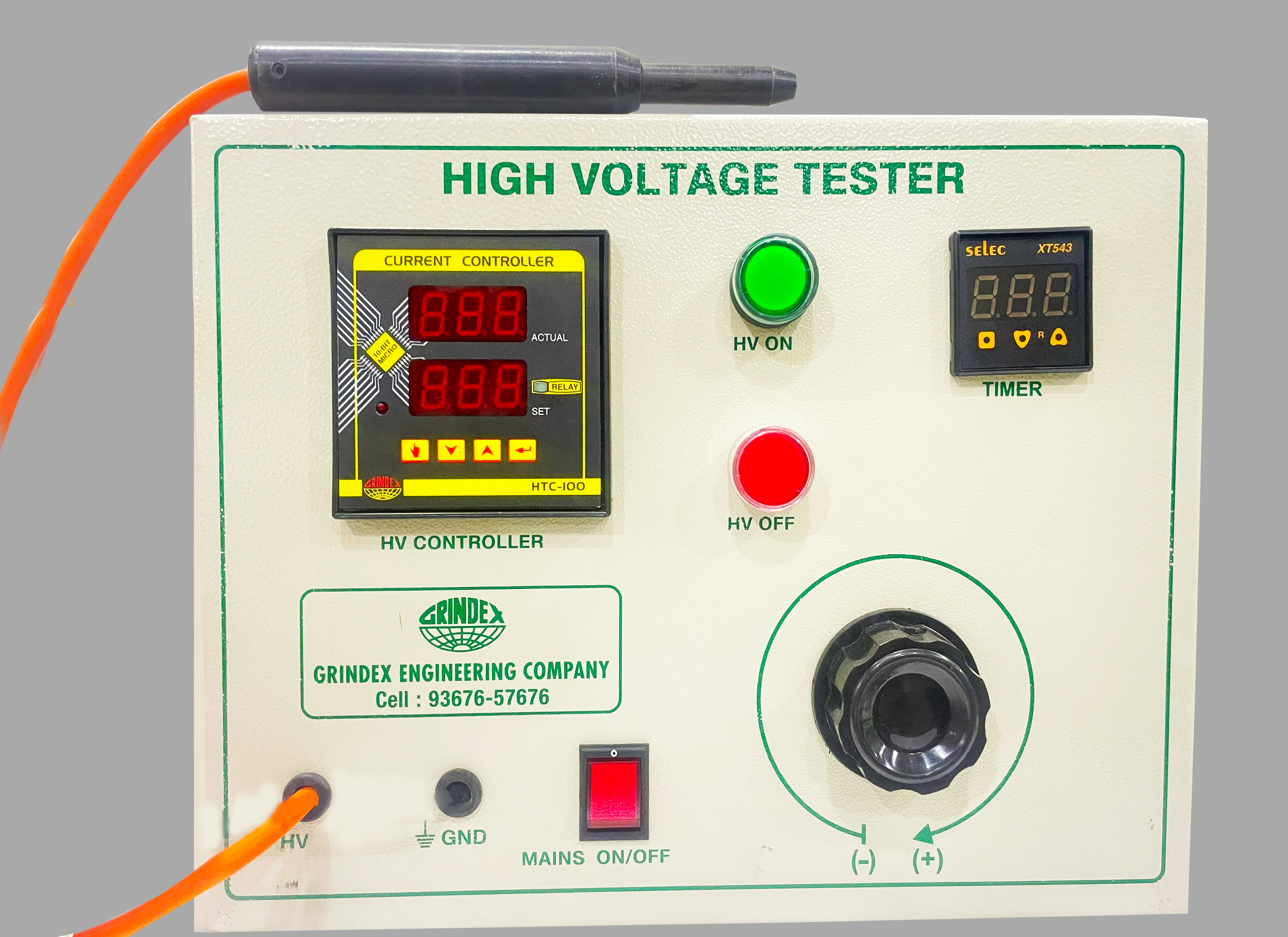

High Voltage Tester

Parameter:	Description.
Current range:	10mA to 5000mA.
Voltage range:	2kv to 5kV.
Trip Current:	1mA to 5000mA ( SET ).
Timer Option:	Optional.

❮ ❯

Fully Electric & Automatic Motor Test Panel

Parameter:	Description.
Range:	LT Motors upto 100kW.
Test covered:	As per IS 12615.
Suitable Motor type:	Single Phase, Two Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation.
Voltage control:	Automatic though motorised dimmer according to master data.
Mode of operation:	Automatic and ManuaL.
Loading Mechanism:	Dynamometer, Regenative Type, Back to Back method.

❮ ❯

Automatic Sequential Tester - Monoblock Stator

Parameter:	Description.
Range:	As per customers requirements.
Test covered:	Resistance, IR, HV,HV after IR, Polarity, Surge, Direction.
Suitable Motor type:	Single Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation With QR code printout.
Mode of operation:	Automatic and ManuaL.

❮ ❯

Automatic Motor Routine Test Panel

Parameter:	Description.
Range:	LT Motors upto 100kW.
Test covered:	Discharge, Resistance, IR, HV, HV after IR, No load, Locked Rotor, Reduced Voltage, Discharge
Suitable Motor type:	Single Phase, Two Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation.
Mode of operation:	Automatic and ManuaL.

❮ ❯

Computerised Pump Type Test Panel

Parameter:	Description.
Range:	As per customers requirements.
Test covered:	As per the Indian Standards
Suitable Motor type:	Single Phase, Two Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation.
Mode of operation:	ManuaL.

❮ ❯

Computerised Pump Routine Test Panel with Test RIG

Parameter:	Description.
Range:	As per customers requirements.
Test covered:	As per the Indian Standards
Features:	Automatic valve is used to control the Flow and head.
Suitable Motor type:	Single Phase, Two Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation.
Mode of operation:	Automatic and ManuaL.

❮ ❯

Endurance Panel For Motor

Parameter:	Description.
Range:	LT Motors upto 100kW.
Test covered:	Endurance test, ON/OFF Test
Suitable Motor type:	Single Phase, Two Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation.
Mode of operation:	Automatic.

❮ ❯

Endurance Panel For Pump

Parameter:	Description.
Range:	As per customers requirements.
Test covered:	As per the Indian Standards, Endurance test, ON/OFF Test, Performance Test
Suitable Motor type:	Single Phase, Two Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation.
Mode of operation:	Automatic and Manual.

❮ ❯

Automatic Sequential Tester - SUBMERSIBBLE Stator

Parameter:	Description.
Range:	As per customers requirements.
Test covered:	Resistance, IR, HV, IR after HV.
Suitable Motor type:	Single Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation With QR code printout.
Mode of operation:	Automatic and ManuaL.

❮ ❯

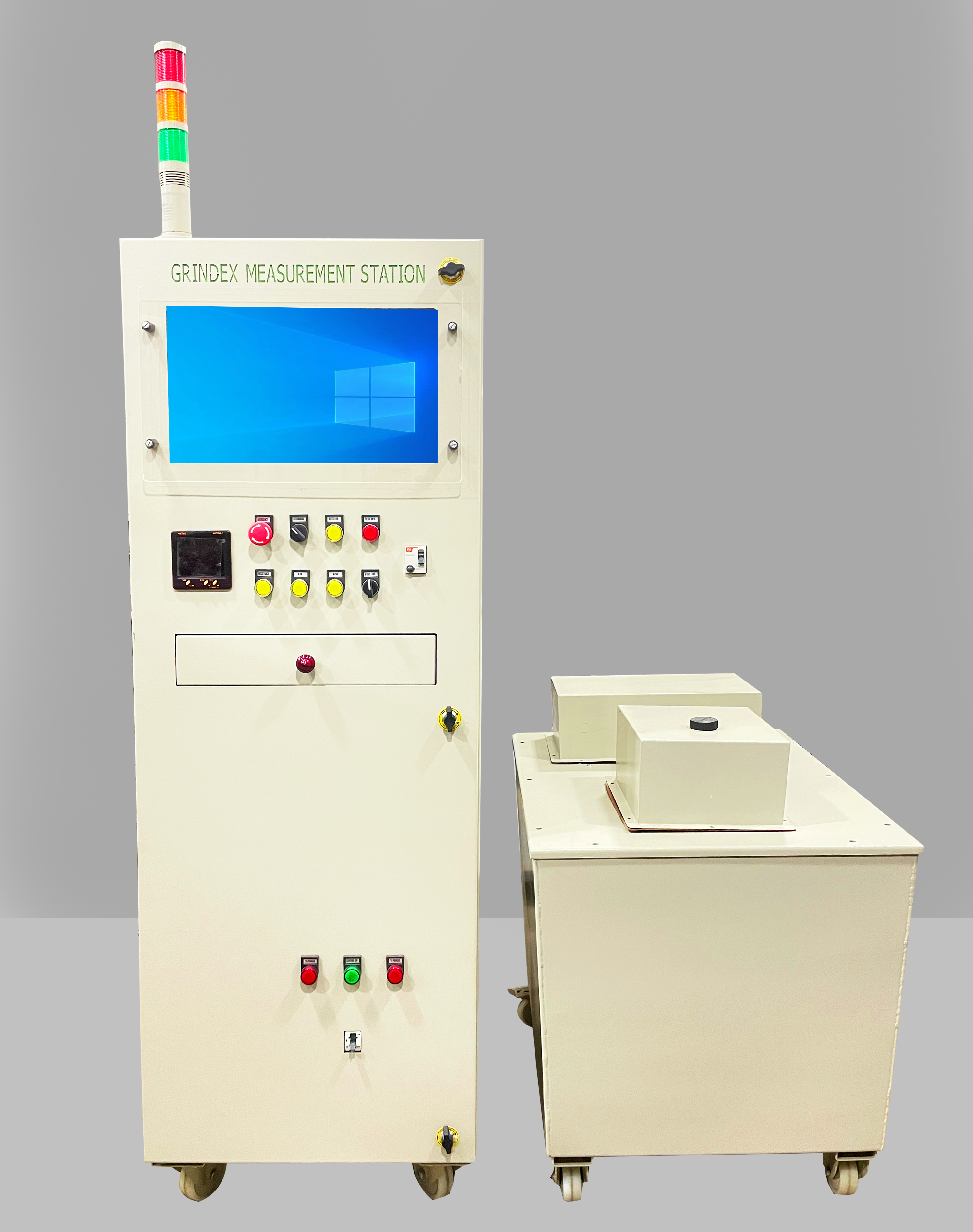

Automatic Sequential Tester - Polywrap Wire

Parameter:	Description.
Range:	As per customers requirements.
Test covered:	Resistance, IR, HV, IR after HV.
Features:	HV @ 1000V, HV @ 2000V, HV @ 3000V ( Voltage increases Automatically ).
Suitable Motor type:	Single Phase and Three Phase.
Software:	“Java based” Clint server-based software with user management for all types of the motor with real-time data monitoring & production report generation With QR code printout.
Mode of operation:	Automatic and ManuaL.

❮ ❯

T.O.P Tester

Parameter:	Description.
Range:	Amb. to 180 °C.
Display:	7” Multi colour touch screen display.
Features:	5nos T.O.P to tested at a time.
Medium:	Slilicon Oil

❮ ❯

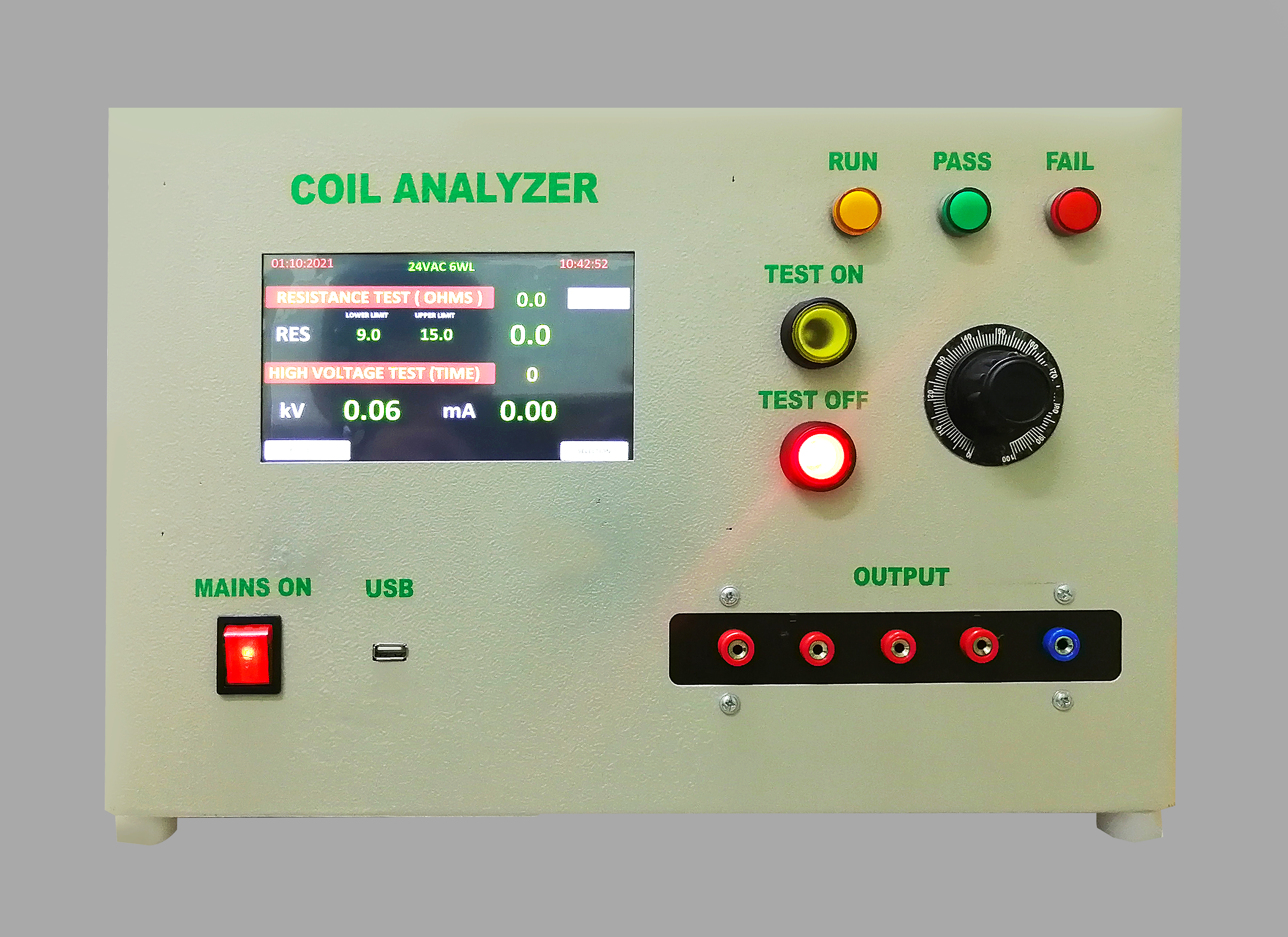

Solenoid Coil Tester

Parameter:	Description.
Range:	As per customers requirements.
Display:	7” Multi colour touch screen display.
Test Covered :	Resistance, IR, HV.
PC Interface:	Ethernet

❮ ❯

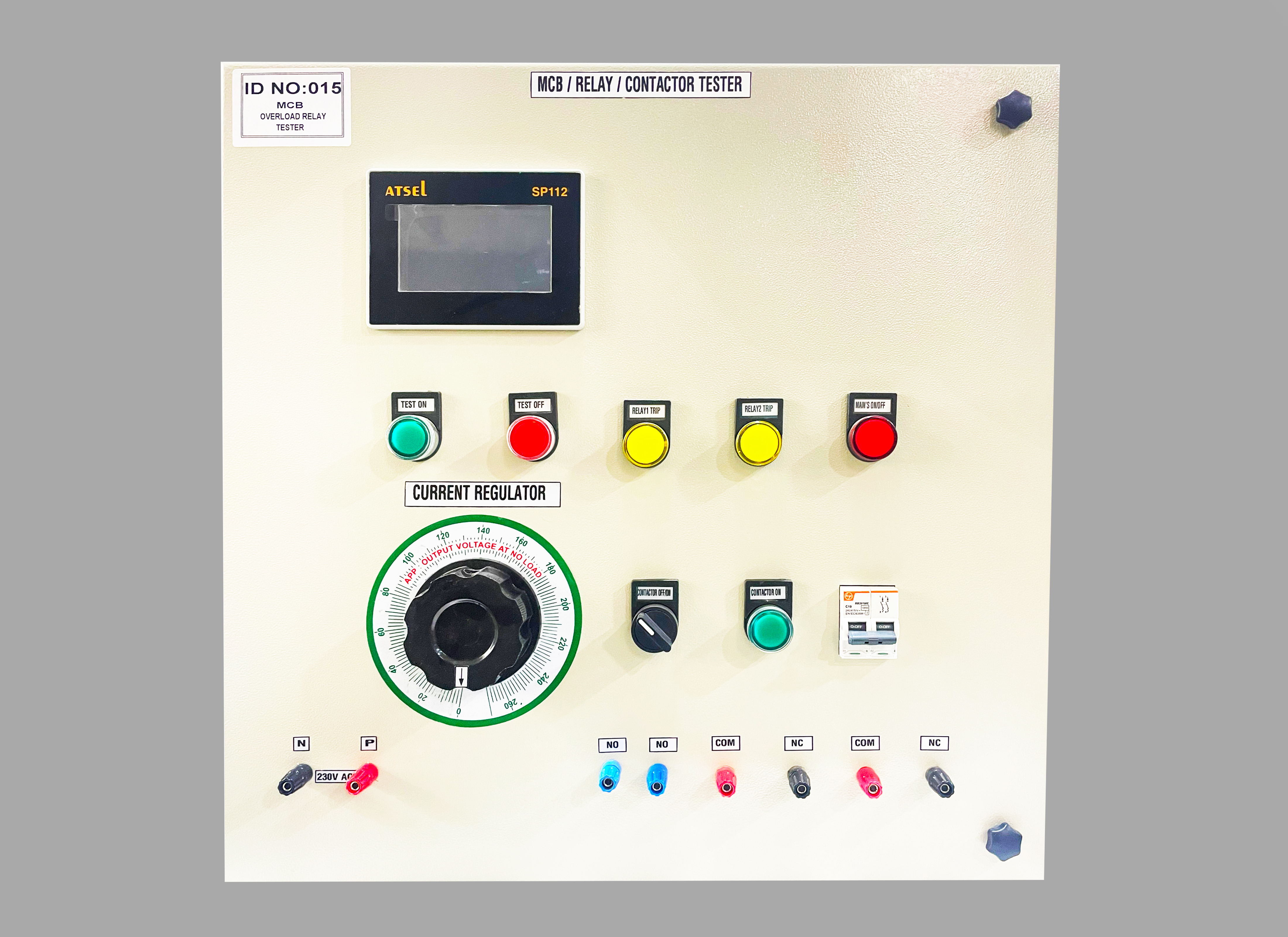

MCB / Relay Tester

Parameter:	Description.
Range:	0 to 100A.
Display:	7” Multi colour touch screen display.
Features:	Trip Current setting, Test time Configurable.
Mode of operation:	Automatic.

❮ ❯

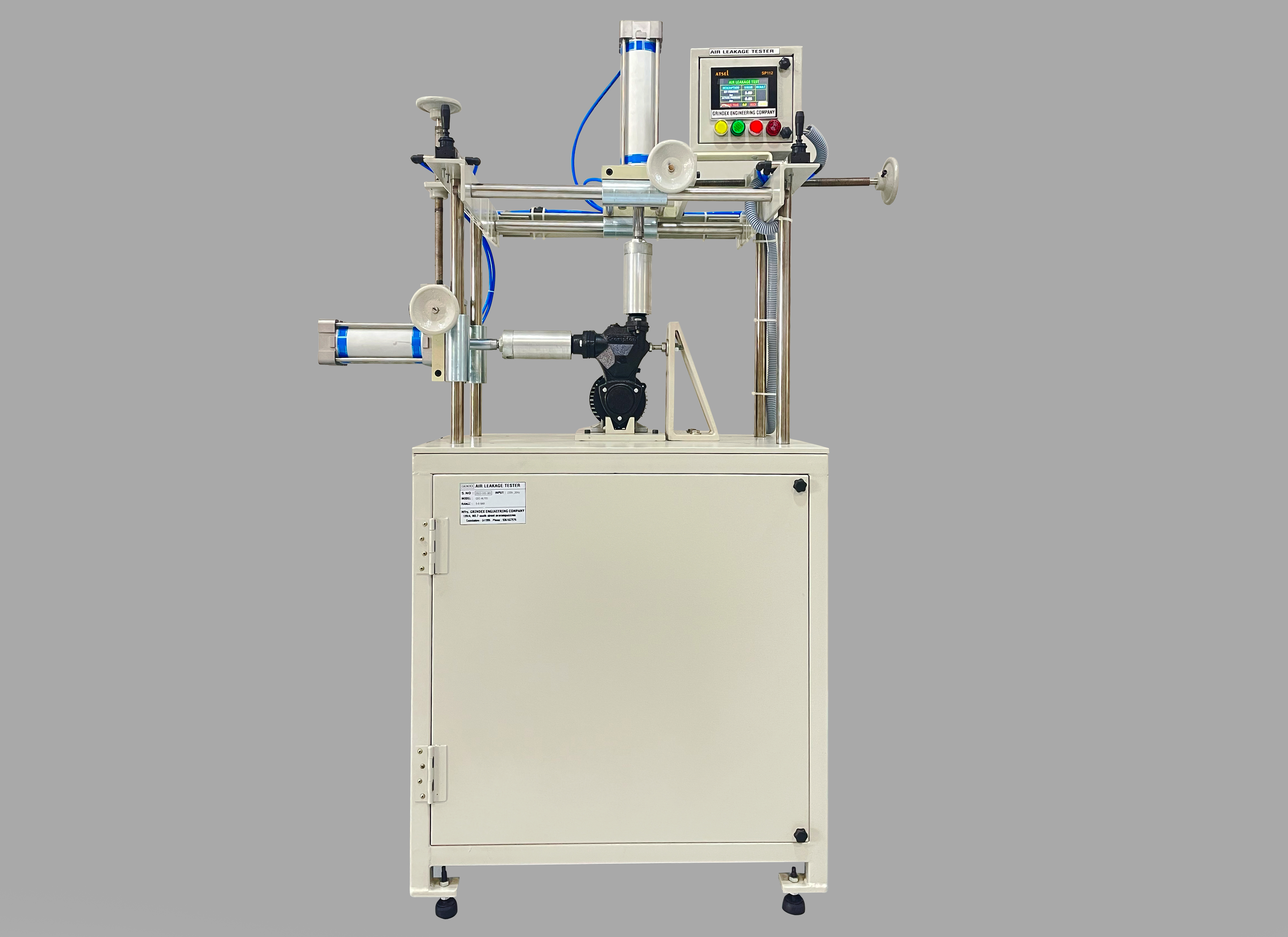

Air Leakage Tester

Parameter:	Description.
Range:	Amb. to 180 °C.
Display:	7” Multi colour touch screen display.
Features:	5nos T.O.P to tested at a time.
Medium:	Slilicon Oil
Mode of operation:	Automatic and ManuaL.

❮ ❯

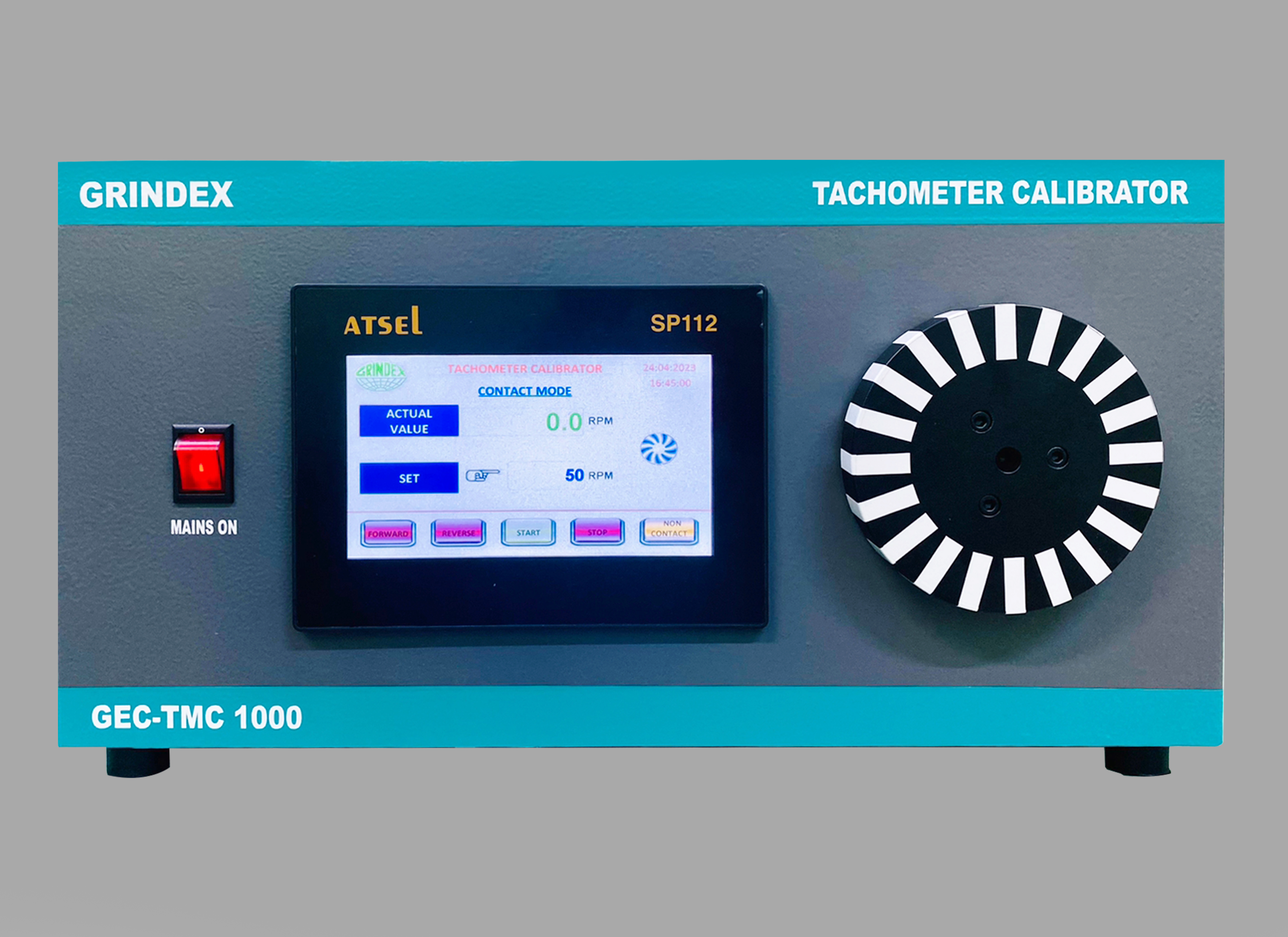

Tachometer Calibrator

Parameter:	Description.
Contact Range:	1 to 12000 RPM.
Non-Contact range:	5 to 120000 RPM.
Display:	7” Multi colour touch screen display.
Resloution:	Contact : 0.1 RPM & NON-Contact : 1 RPM .
Accuracy:	± 0.5 rpm (contact) & ± 5 rpm (non contact)
Stability:	< 3Sec.
Noise Level:	< 50dB.
Motor:	Low noise ultra-stable motor with high precision encoder and drive.
Weight:	13 - 15kg.
Supply Voltage:	230V AC @ 50Hz.
Size:	500(L)x350(B)x300(H)mm.

❮ ❯

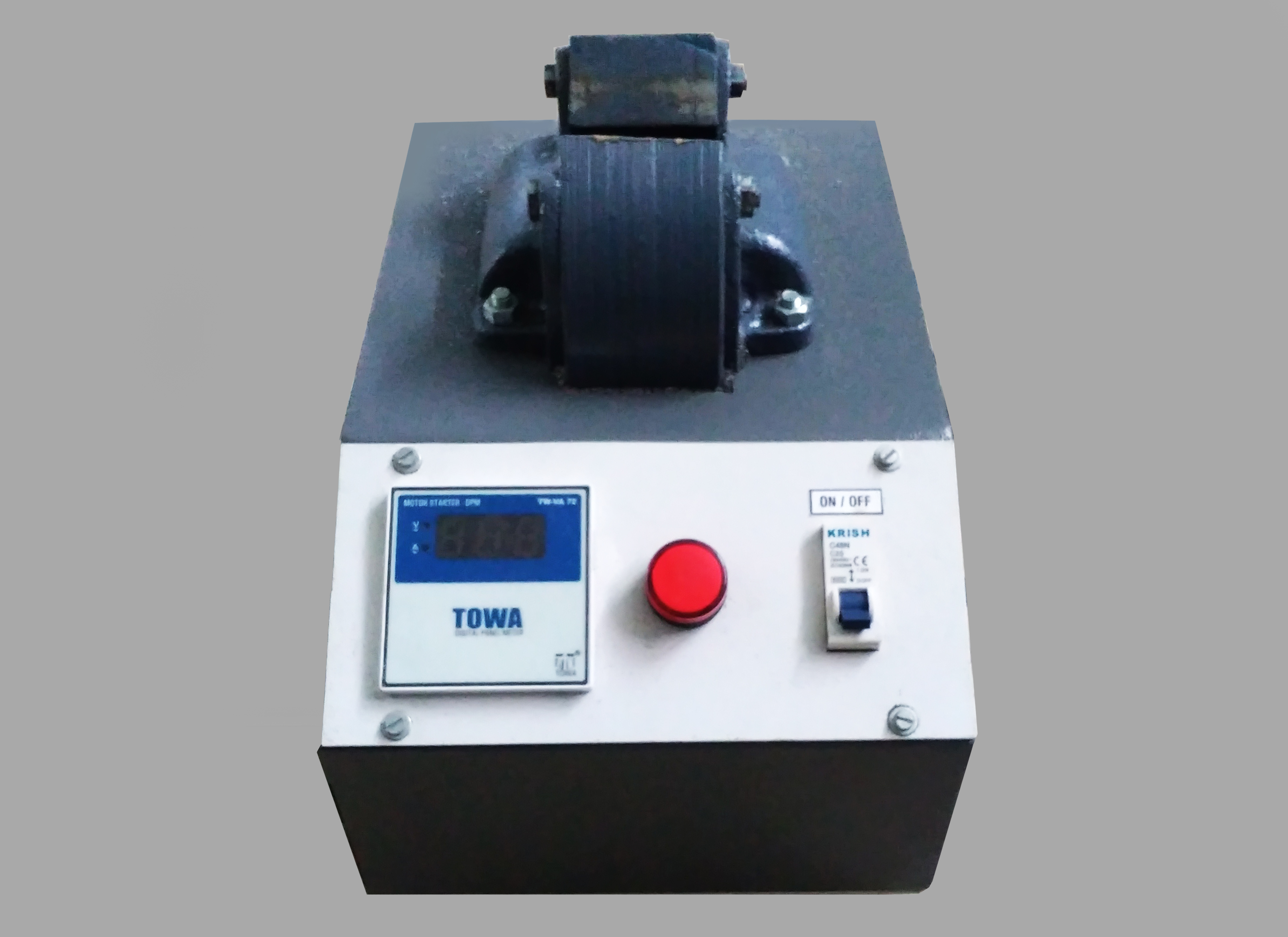

Growler ( For Monoblock and Submersible )

Parameter:	Description.
Length:	40mm to 500mm
Diameter:	20mm to 70mm
Stator Type:	Monoblock, Submerssible.

❮ ❯

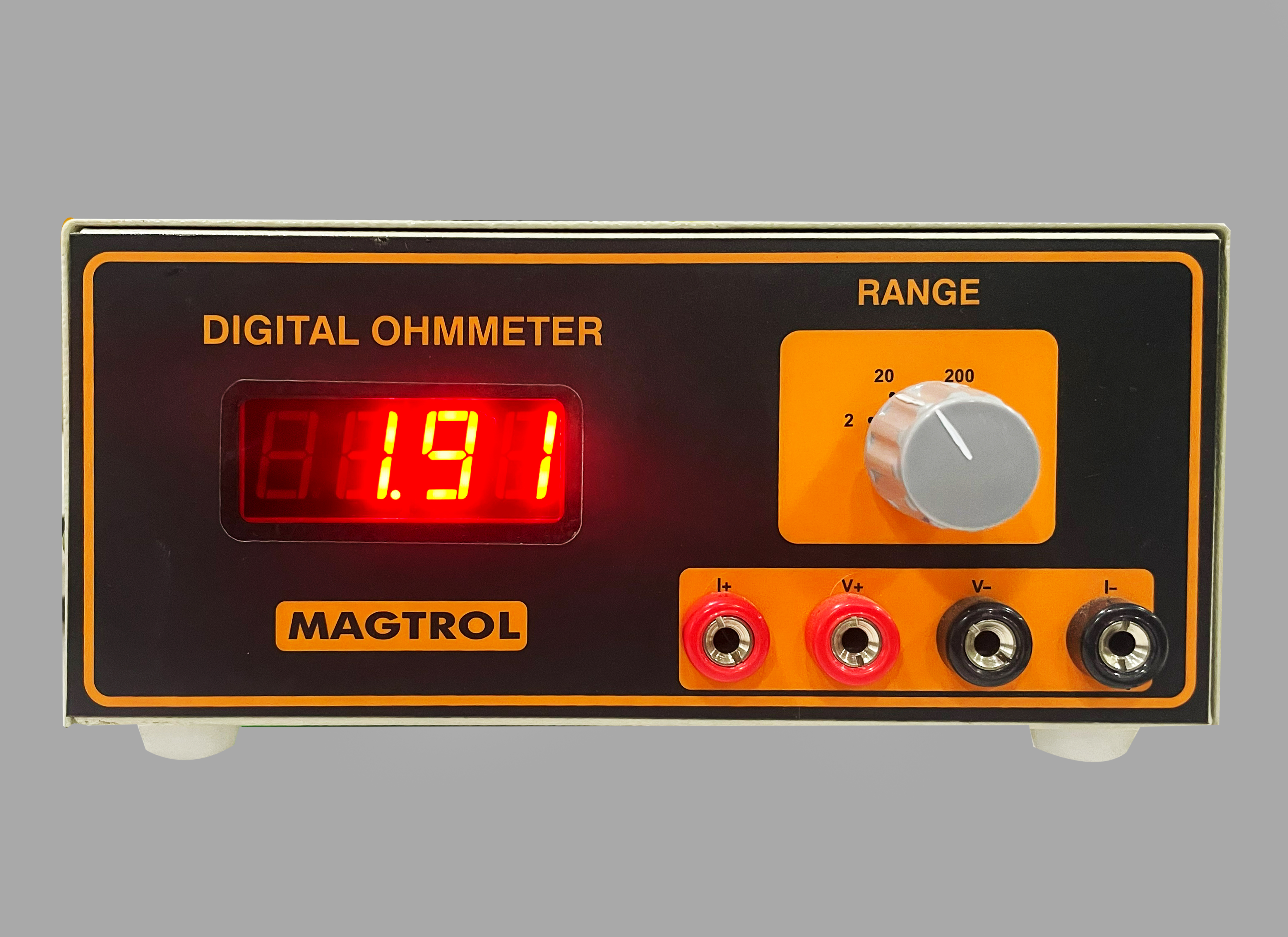

Ohm Meter

Parameter:	Description.
Range:	0.1 to 4000 ohms.
Current range:	200mA to 1mA.
PC Interface:	Ethernet.
Measurement Method:	4 Wire.

Write to us for any Queries / Quote Request
